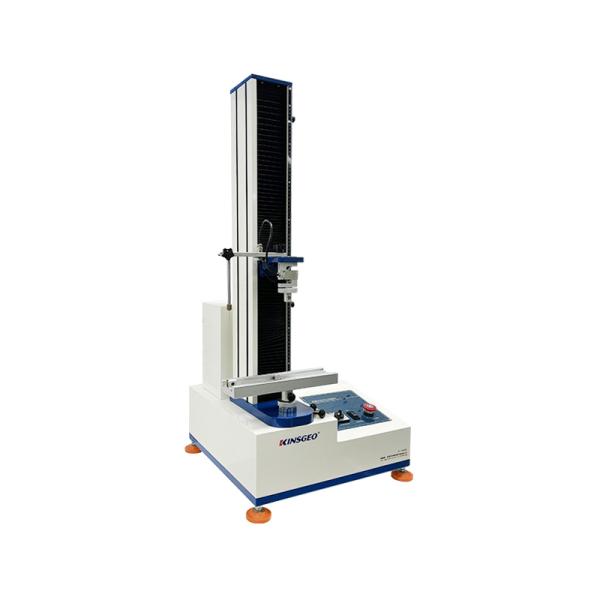

High-precision Peel Strength Tester with 0.5-500mm/min Adjustable Test Speed and 5KG Test Capacity Universal Testing Machine

  • 1
  • 2
  • 3

Brand Name : KINSGEO

Model Number : KJ-1065

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : USD/3800/SET

Payment Terms : T/T

Supply Ability : 30Sets/month

Delivery Time : 15 work days

Weight : 500 kg

Bending Angle : 0 - 180 degree

Interface : USB Interface

Crosshead Speed Range : 0.001-500 mm/min

Software Features : The units select g, kg, N, KN, LB

Loading Accurancy : 2.4KN/s +/- 200N/s

Usage : Compression Strength Tester

Test Speed : 0.1-500mm/min selectable

Range Of Speed : 0.5-500mm/min

Aplication : rubber ,plastic ,nylon ,leather and etc

Round Angle : R1-1.5mm

Stroke : 650mm

Machine Accuracy : Over +/-0.5%

Power : Electronic

Product name : Computer control single column universal testing machine

Power supply : 220V 50Hz

Application : universal tester

Standard : ASTM E8/A370/ISO 75001

Warranty : 1 Year

Accuracy : +/-0.5%

Operation : Computer windows operation

Contact Now

High-Precision Peel Strength Tester
This high-precision peel strength tester is engineered for comprehensive adhesion performance evaluation across various adhesive products and substrate materials.
Applications
  • Adhesive tapes and self-adhesive labels
  • Protective films and release papers
  • Release films and substrate tensile strength
Testing Capabilities
  • 90° peel testing
  • 180° peel testing
  • Release force testing
  • Pressure and tension tests with professional software
Technical Specifications
Test Resolution 0.5g/25mm
Accuracy Class 0.5
Test Capacity 5KG
Test Speed Range 0.5-500mm/min
Key Components High-precision American sensor, servo motor and driver
Control & Safety Features
  • Full digital closed-loop control system
  • Automatic return function
  • Overload protection and safety limit features
  • Computer control and manual jog operation modes
  • High accuracy in force, speed, and displacement control
Compliance Standards
ASTM D3330, FINAT, GB/T 2792, PSTC
Customization & Applications
Custom fixtures are available to meet diverse testing requirements. This instrument is an ideal quality control solution for adhesive and electronic material manufacturers, significantly enhancing quality assurance in the electronic material industry.
High-precision Peel Strength Tester with 0.5-500mm/min Adjustable Test Speed and 5KG Test Capacity Universal Testing Machine High-precision Peel Strength Tester with 0.5-500mm/min Adjustable Test Speed and 5KG Test Capacity Universal Testing Machine
